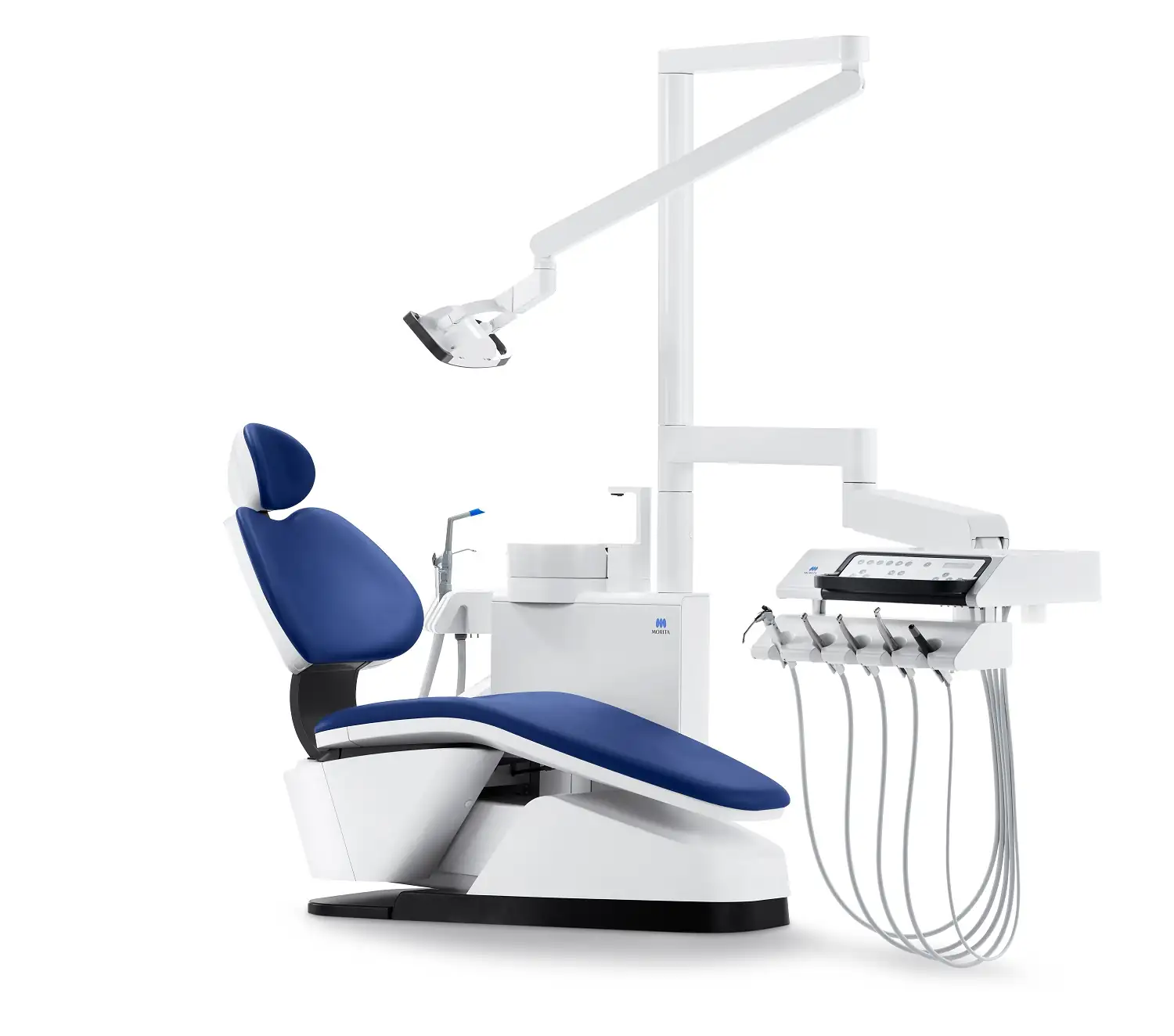

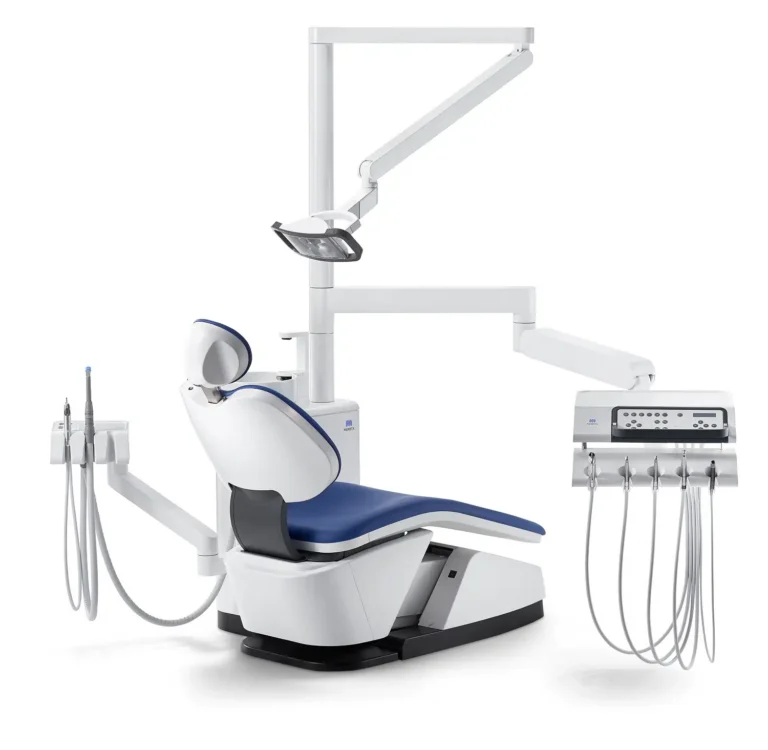

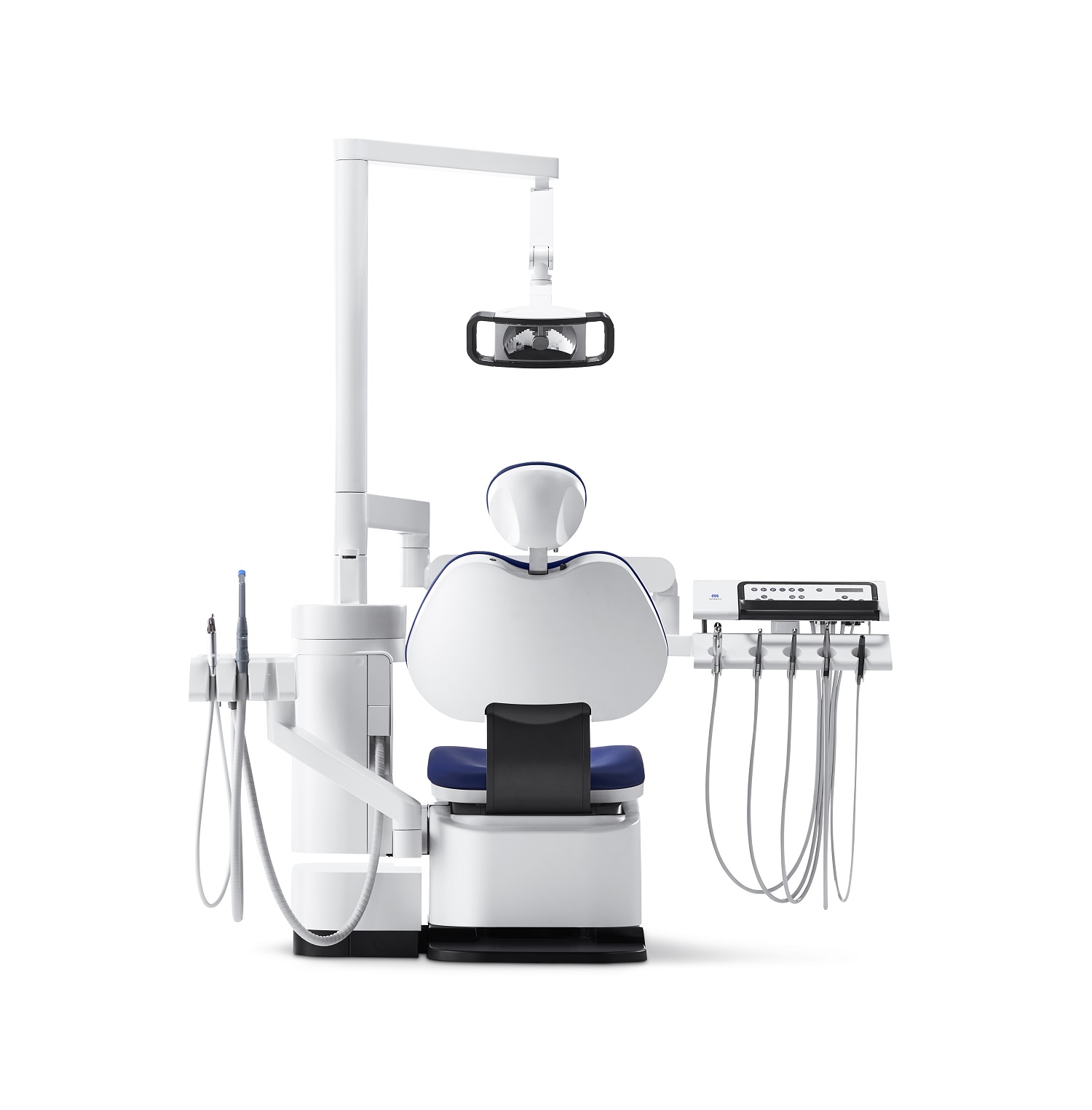

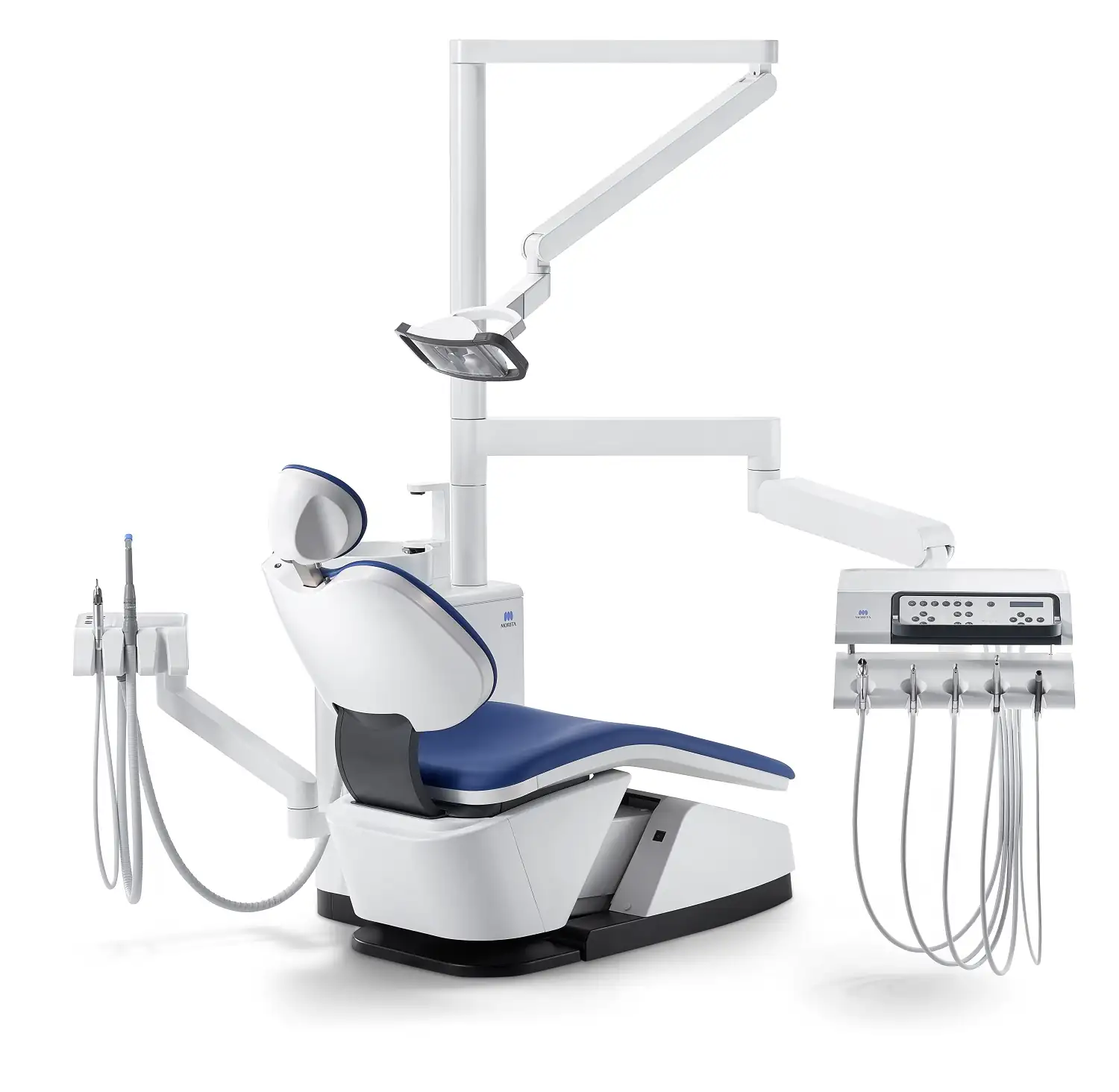

Signo T100

รูปสินค้า

รายละเอียด

กลุ่มสินค้า TREATMENT UNITS

ข้อมูลสินค้า

Technology meets Aesthetics

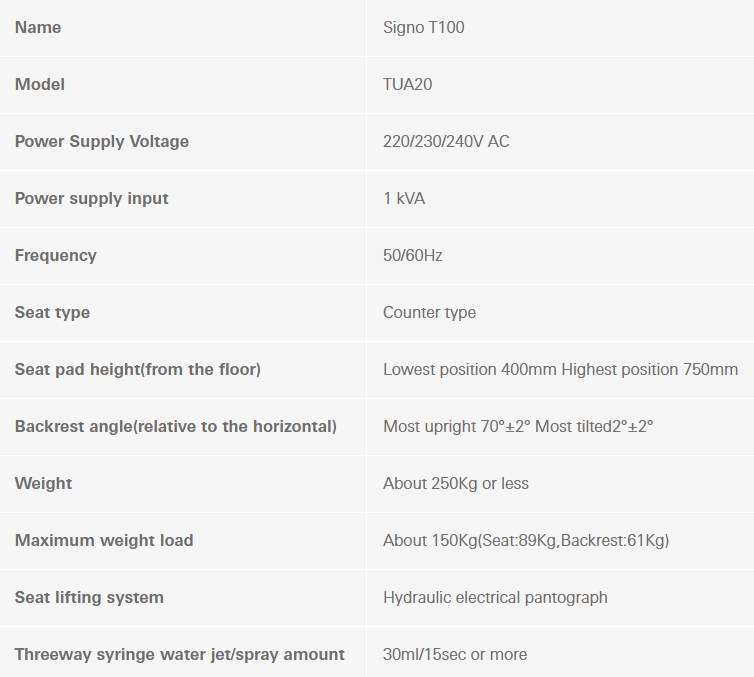

Specifications

รายละเอียดเพิ่มเติม

Simplicity and Performance

Pantograph Lift Mechanism The cantileveed chair is coupled with a pantograph lift mechanism, the most widely used height adjustment mechanism in the world. Patients can stretch out their legs during treatment, which means they are less stressed and can cope with longer treatments.

Minimum 400 mm Height for Enhanced Safety The chair can be lowered to just 400 mm, making it easy for older people and children alike to get on and off safely and with ease.

Luna Vue TS for Optimal Visibility The long-lasting energy-efficient single LED of the Luna Vue TS provides 30,000-lux of brightness and four levels of adjustment to ensure optimal visibility for the operator. The optional Touchless Sensor enables the light to be turned on or off without making direct contact for enhanced hygiene.

Easy-to-Clean Holders The fixed insert holders feature a simple design and are easy to clean.

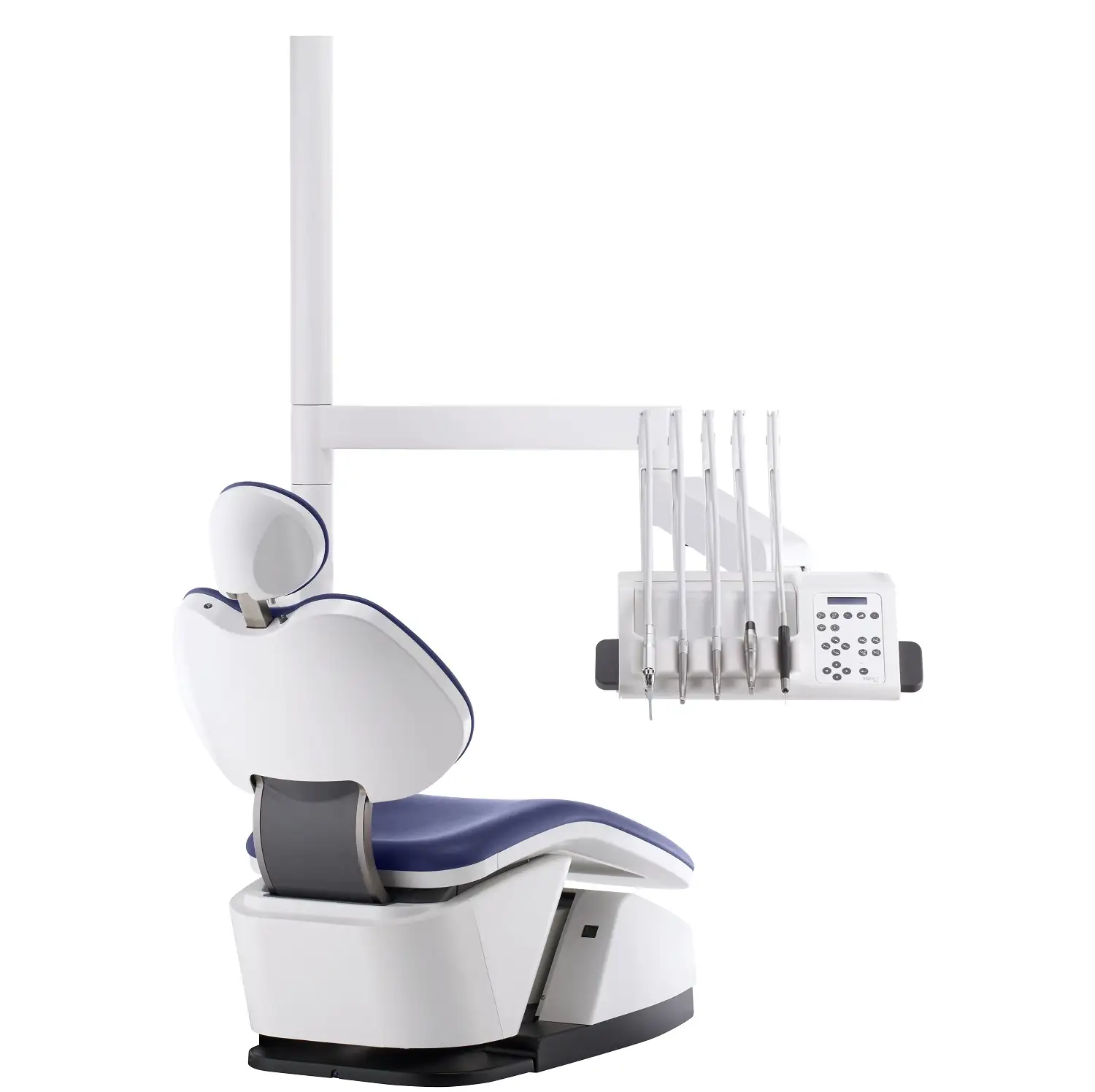

Swing Model The Swing Model is equipped with a Dual-Balanced Arm System, designedto reduce the weight of the instrument, minimizing the physical strain during dental procedures. Additionally, its design promotes hygiene by allowing the tubing to remain elevated above the floor, preventing contamination.

Easy-to-Use Foot Controller The low angle of the foot switch minimizes strain on the ankle from extended periods of operation and the chair’s manual lever has an intuitive design for enhanced ease of operation. An optional movable pedal guard is also available.

Headrest : Simple Design for Ease of Operabilit The simple design of the headrest makes it easy to adjust and it is shaped in such a way as to prevent unwanted movement of the patient’s head during treatment. A twin-axis headrest is available as an option.

Table Moves Effortlessly The table with its integrated holders moves smoothly around a central axis.

Basin Cleaning Function The water supply for the cup also cleans the basin automatically. It can also be cleaned manually and set to clean continuously. Easy Maintenance

Flushing device (Option) This flushing device drains residual water from the unit’s piping. The flushing adapter can be stored inside the unit.

Vacuum Filter The vacuum filter to be cleaned every day is located behind the assistant-side holder where it is easy to access.

Sterilization Cartridges (Option) The porous hollow-fiber membranes in the cartridges capture bacteria and other contaminants to supply both clean air and clean water. Swing Model

Reduces wrist strain caused by the weight of instruments. The chair is equipped with a Dual-Balanced Arm System that maintains balance,even when the swing arm is in a vertical position. This system reduces wrist strain and ensures smoother, more efficient procedures.

Auxiliary Tray (Small)

Auxiliary Tray (Large)

Versatile Treatment Styles The auxiliary tray is available in two sizes large and small with the tray arm offered in three different types,allowing for flexibility to suit various treatment styles.
